Keycloak

Using CHT with Keycloak

Introduced in 4.20.0

Introduction

These steps document how to configure Keycloak as the Single Sign On (SSO) identity provider for the CHT. As well, it walks through provisioning a single user for SSO.

Prerequisites

  • Keycloak server - ensure you are running a supported version
  • CHT server - ensure you are running version 4.20.0 or later
  • DNS Entries for CHT and Keycloak
  • TLS enabled on CHT and Keycloak

Start with creating a Keycloak compose file and two cert files in a new ~/cht-keycloak directory by running this code:

mkdir -p $HOME/cht-keycloak/data
curl -so $HOME/cht-keycloak/server.crt https://local-ip.medicmobile.org/fullchain
curl -so $HOME/cht-keycloak/server.key https://local-ip.medicmobile.org/key
cat > $HOME/cht-keycloak/compose.yaml << EOF
services:
  keycloak:
    image: quay.io/keycloak/keycloak
    environment:
      KEYCLOAK_ADMIN: medic
      KEYCLOAK_ADMIN_PASSWORD: password
      KC_HTTPS_CERTIFICATE_FILE: /opt/keycloak/conf/server.crt
      KC_HTTPS_CERTIFICATE_KEY_FILE: /opt/keycloak/conf/server.key
    ports:
      - "8443:8443"
    command: start-dev
    volumes:
      - $HOME/cht-keycloak/server.crt:/opt/keycloak/conf/server.crt
      - $HOME/cht-keycloak/server.key:/opt/keycloak/conf/server.key
      - $HOME/cht-keycloak/data:/opt/keycloak/data
EOF
cd $HOME/cht-keycloak
docker compose up -d

The Keycloak instance is accessible on your Docker Helper URL, but on port 8443. For example https://192-168-68-26.local-ip.medicmobile.org:8443. The username is medic and the password is password.

Now create an instance of Docker Helper.

Keycloak Setup

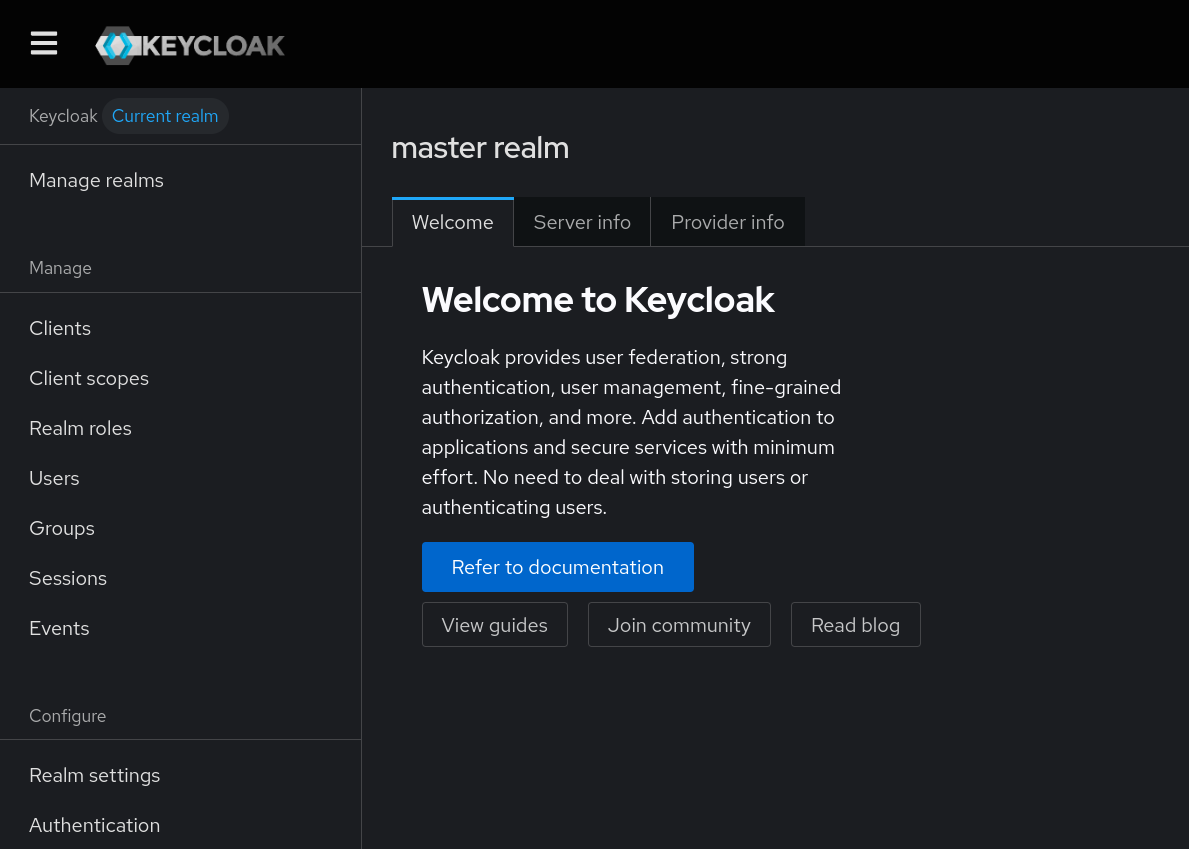

Open Keycloak

Be sure you’re logged in


Add new Client

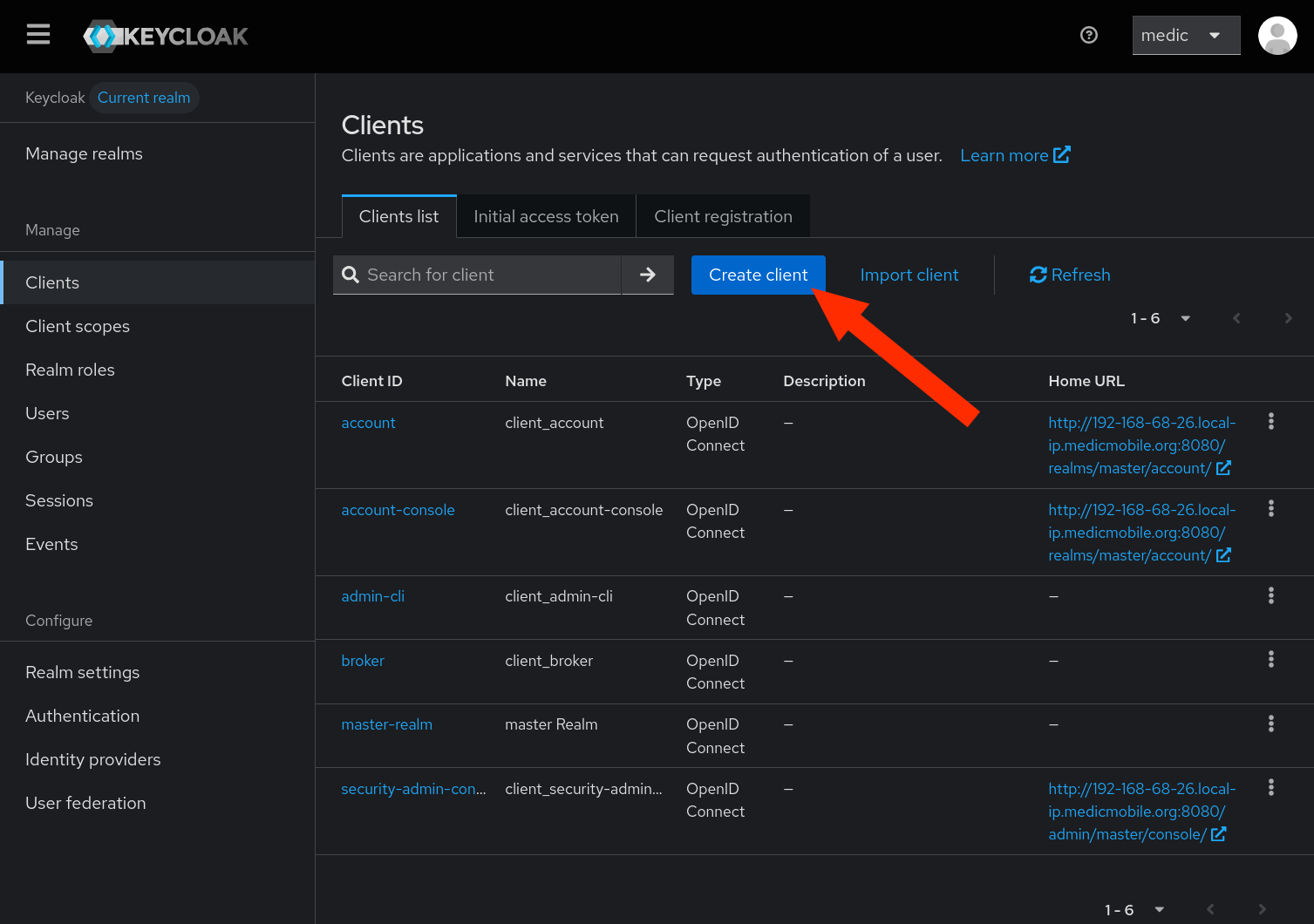

Add new Client in Keycloak by going to “Clients” > “Create Client”. Be sure to replace CHT_URL with the production URL of your CHT instance. If you’re on a development instance be sure to include the port:

  • Client Type: OpenID Connect
  • Client ID: CHT
  • Client authentication: On
  • Authentication Flow: Standard flow
  • Valid redirect URIs: https://<CHT_URL>/medic/login/oidc

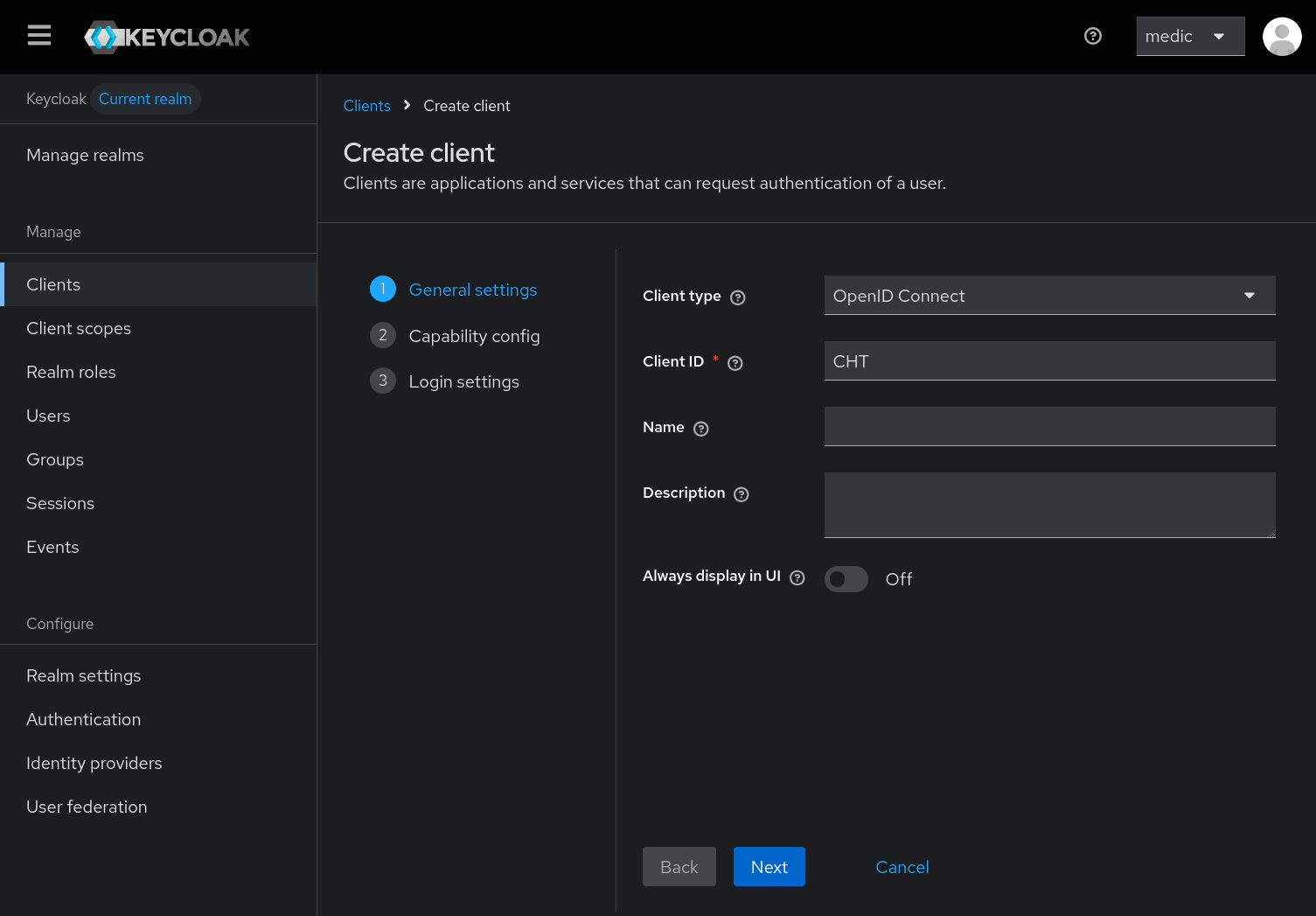

Create new Client

Client ID

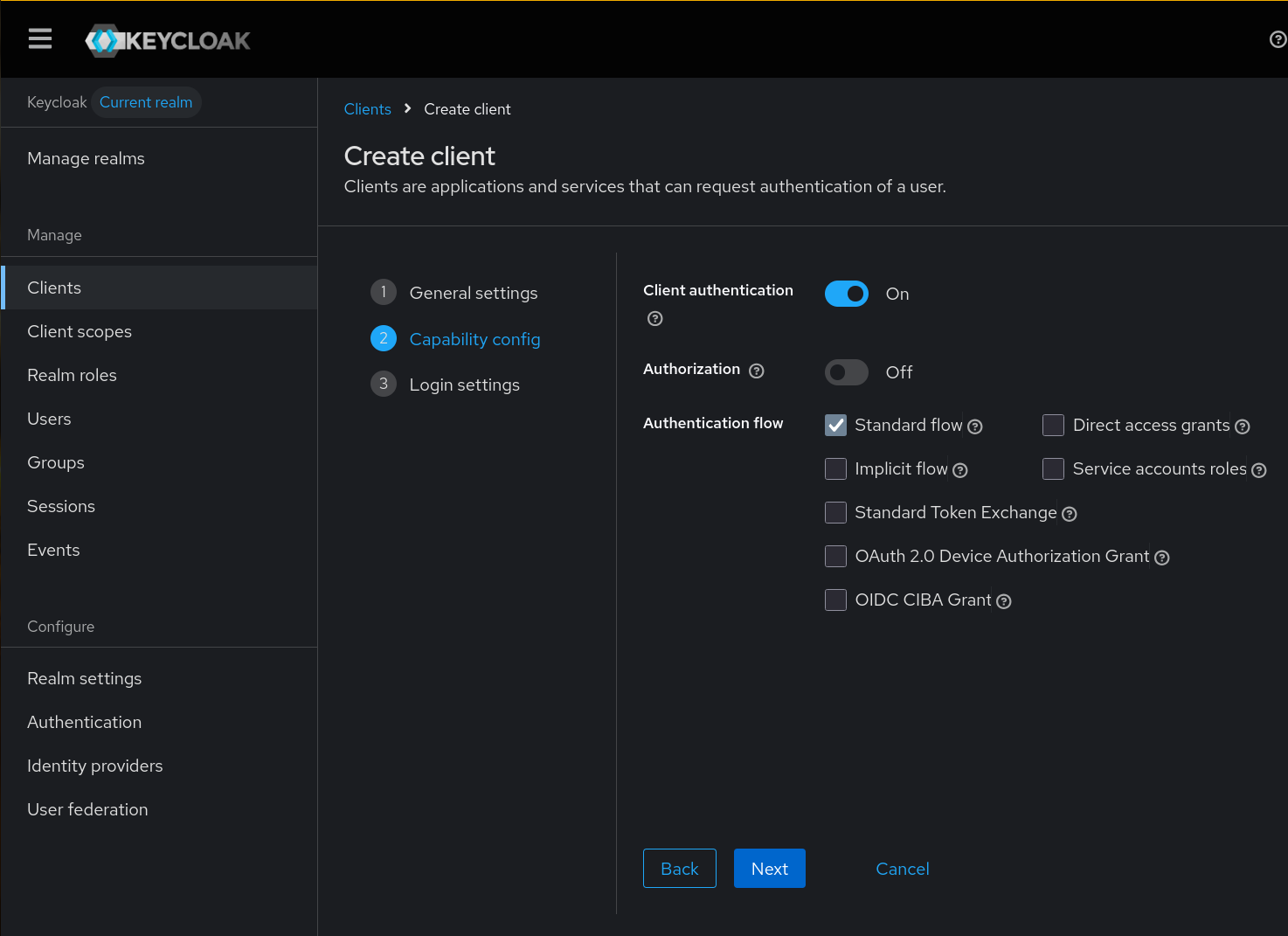

Client authentication

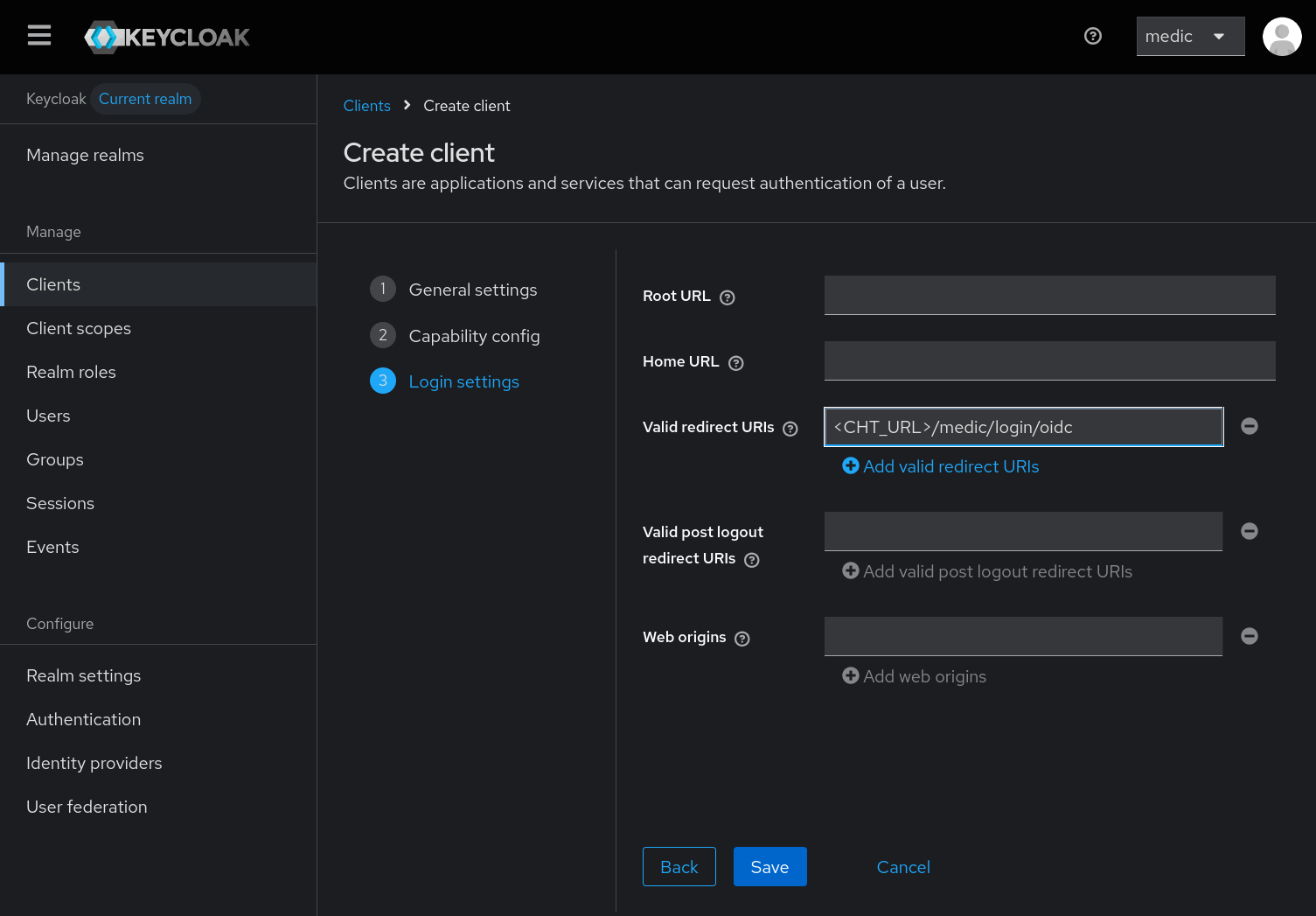

Valid redirect URIs

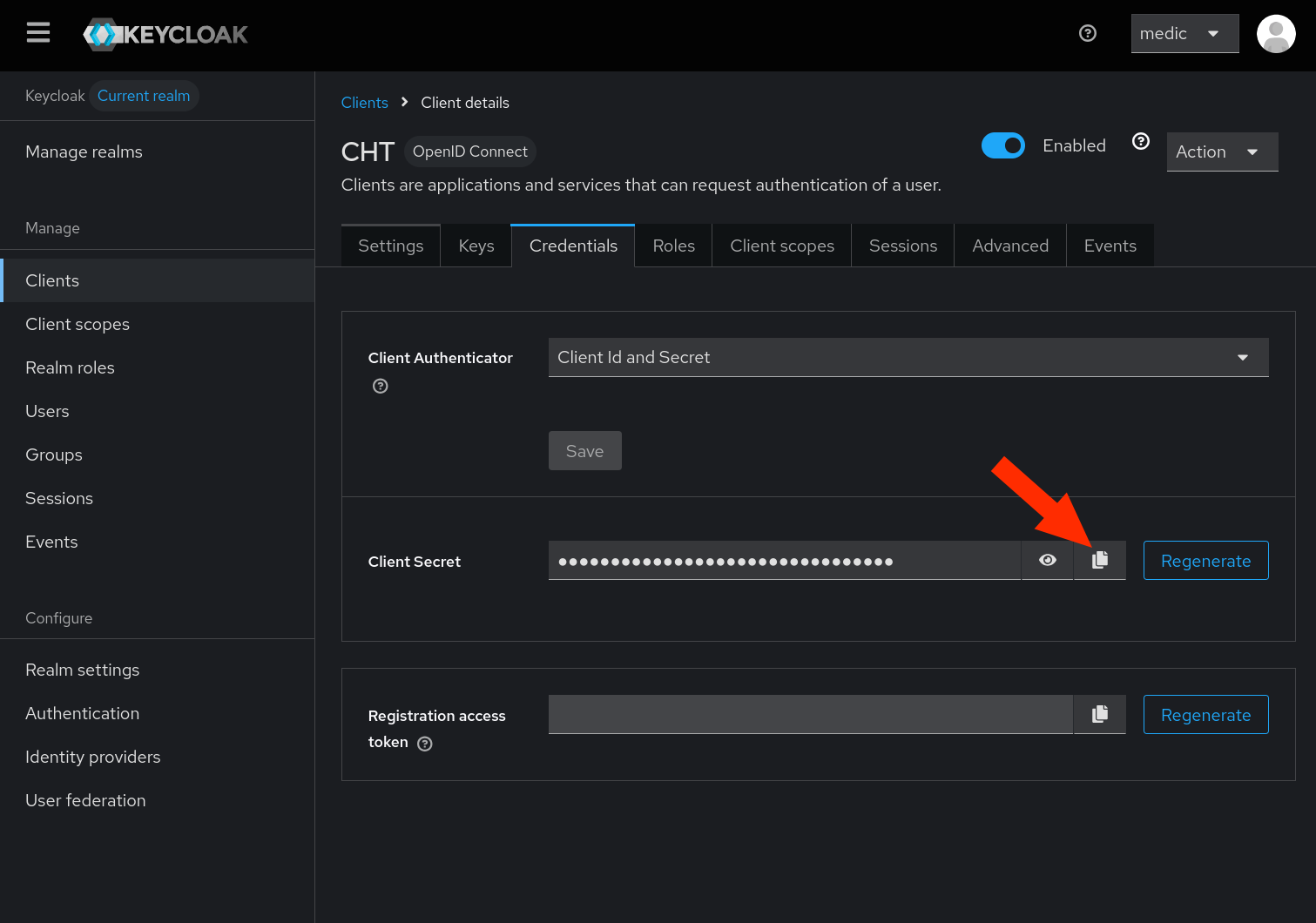

Copy Secret

On the new CHT client go to “Credentials” and copy the “Client Secret” value. You’ll need this later when configuring the CHT.


CHT Setup

CHT App Settings

In the config directory for your app, update your app_settings.json file to contain this additional JSON at the end, before the very last }

Be sure to replace KEYCLOAK_URL with the production URL of your Keycloak instance and CHT_URL with the production URL of your CHT instance. If you’re using a development instance, be sure the CHT_URL includes your port.

    "oidc_provider": {
      "client_id": "CHT",
      "discovery_url": "https://<KEYCLOAK_URL>/realms/master/.well-known/openid-configuration"
    },
    "app_url": "https://<CHT_URL>/"

Upload CHT config

Upload the config using CHT Conf. Replace CHT_URL with the production URL of your CHT instance, USER with your admin user and PASSWORD with your password:

cht --url=https://<USER>:<PASSWORD>@<CHT_URL> compile-app-settings upload-app-settings

Upload the config using CHT Conf. Replace CHT_URL with the docker helper URL, including port:

cht --url=https://medic:password@<CHT_URL> compile-app-settings upload-app-settings

Client Secret in CHT

Use the /api/v1/credentials REST api to set the client secret as the oidc:client-secret credential.

Be sure to replace SECRET with the value from step 5 above. As well, replace CHT_URL with the production URL of your CHT instance, USER with your admin user and PASSWORD with your password:

curl -X PUT https://<USER>:<PASSWORD>@<CHT_URL>/api/v1/credentials/oidc:client-secret \
     -H "Content-Type: text/plain" \
     --data "<SECRET>"

Be sure to replace SECRET with the value from step 5 above. As well, replace CHT_URL with the docker helper URL, including port:

curl -X PUT https://medic:password@<CHT_URL>/api/v1/credentials/oidc:client-secret \
     -H "Content-Type: text/plain" \
     --data "<SECRET>"

Upon success, curl should show the JSON {"ok":true} .

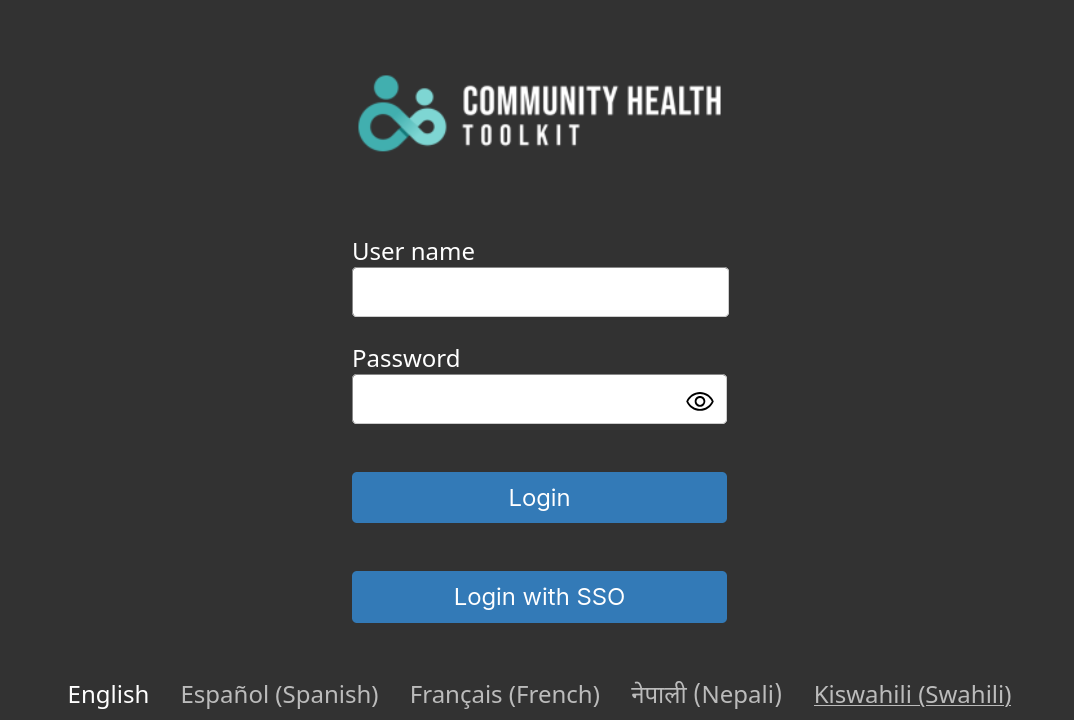

Further, going to the CHT login screen should now show an extra login button “Login with SSO”. You may need to hold down the “shift” key and click reload to clear the browser cache:


Add a test user (optional)

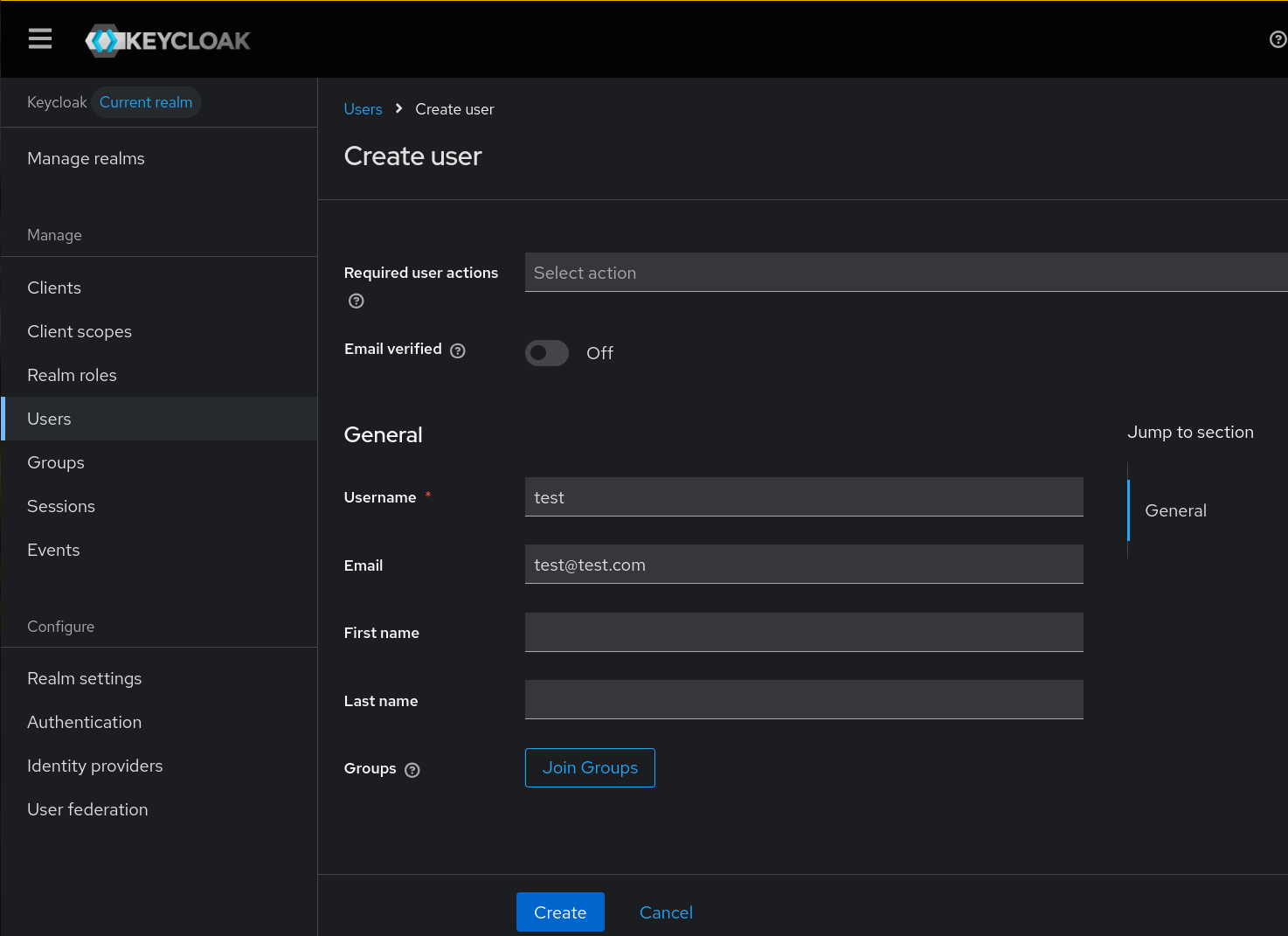

Add Keycloak user

In Keycloak, create a new user by going to “Users” > “Add user”. Specify username of test and and email of test@test.com

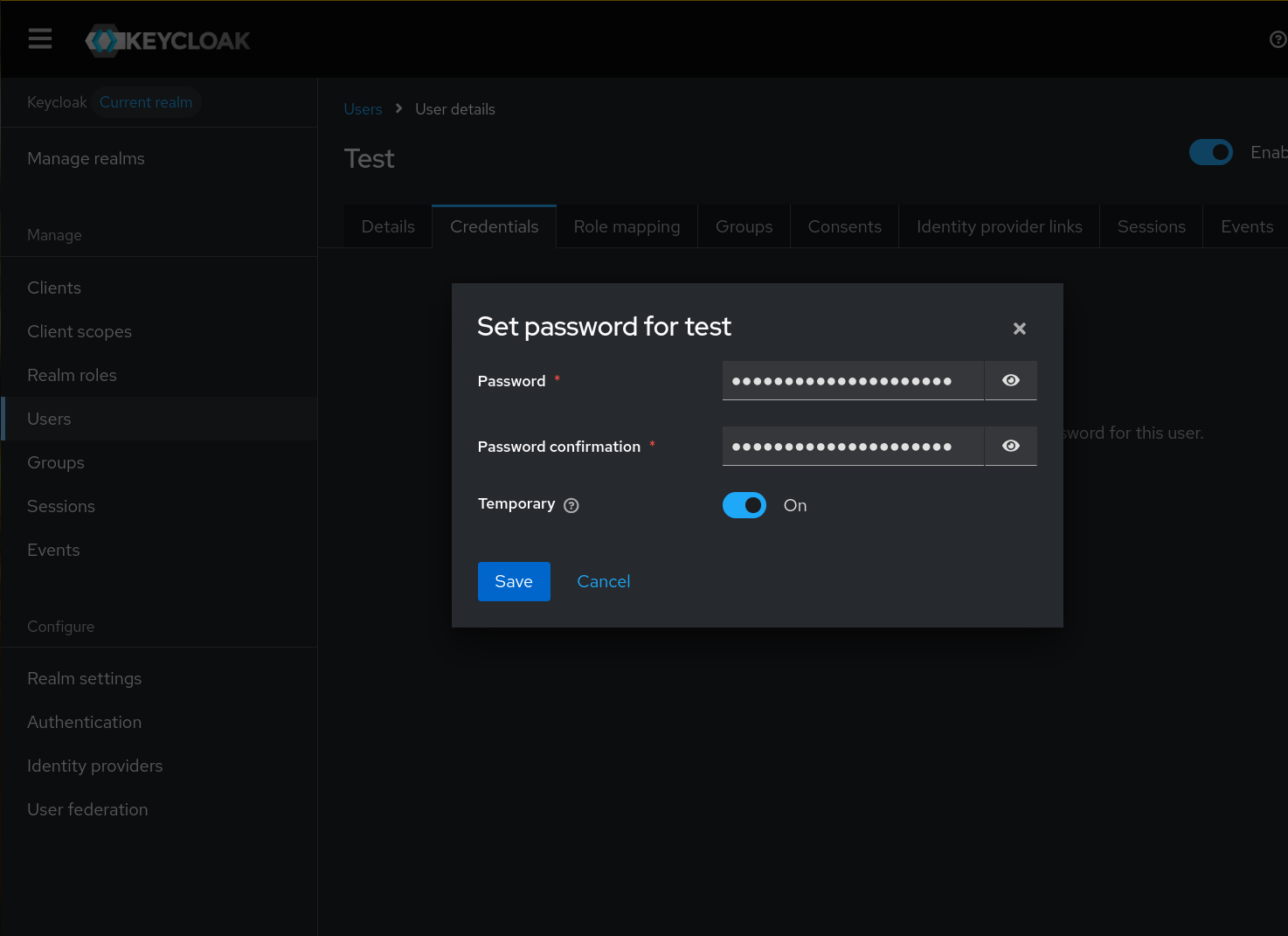

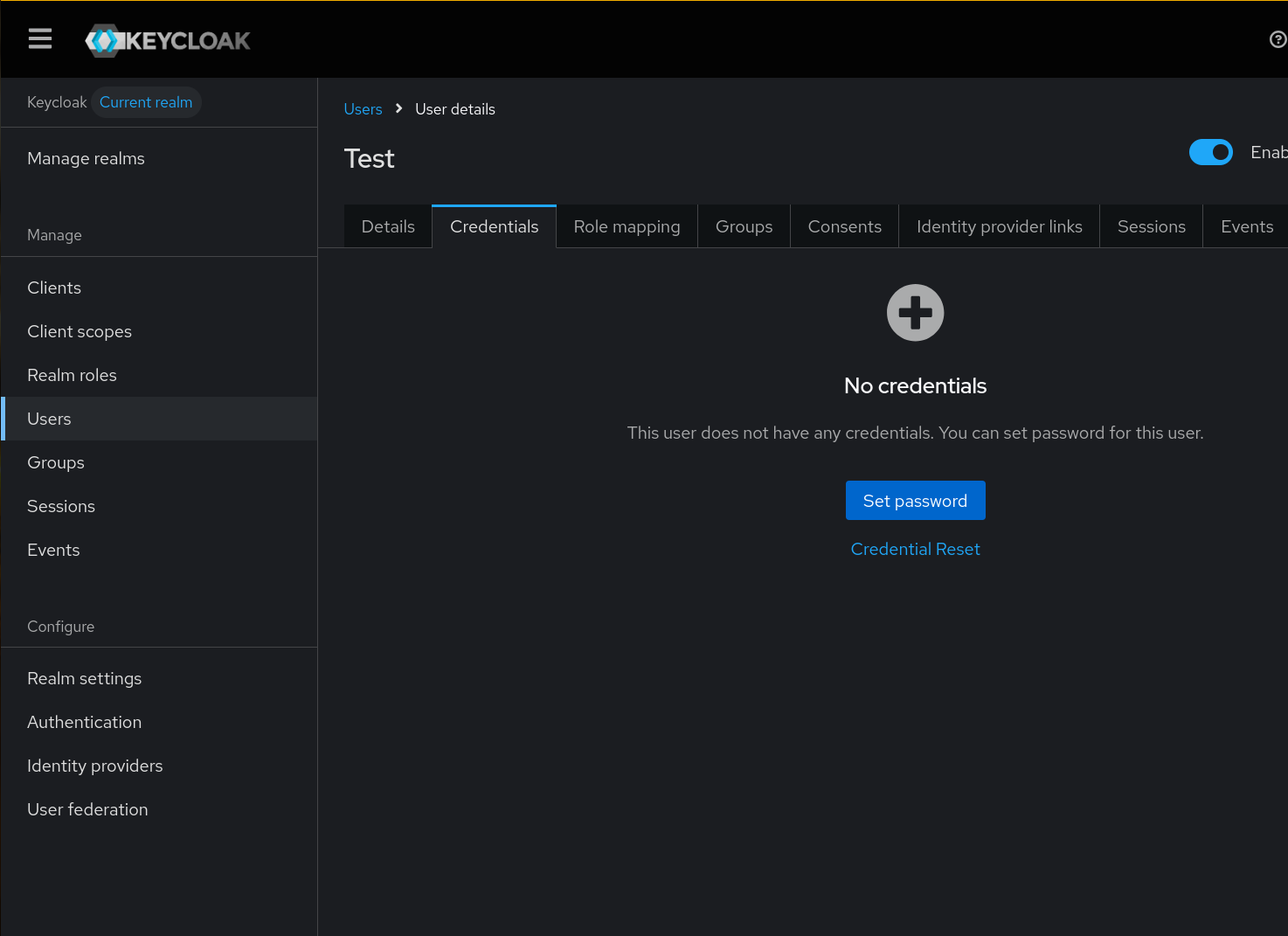

Set Keycloak users’s password

Go to the user’s “Credentials” tab and select “Set password”

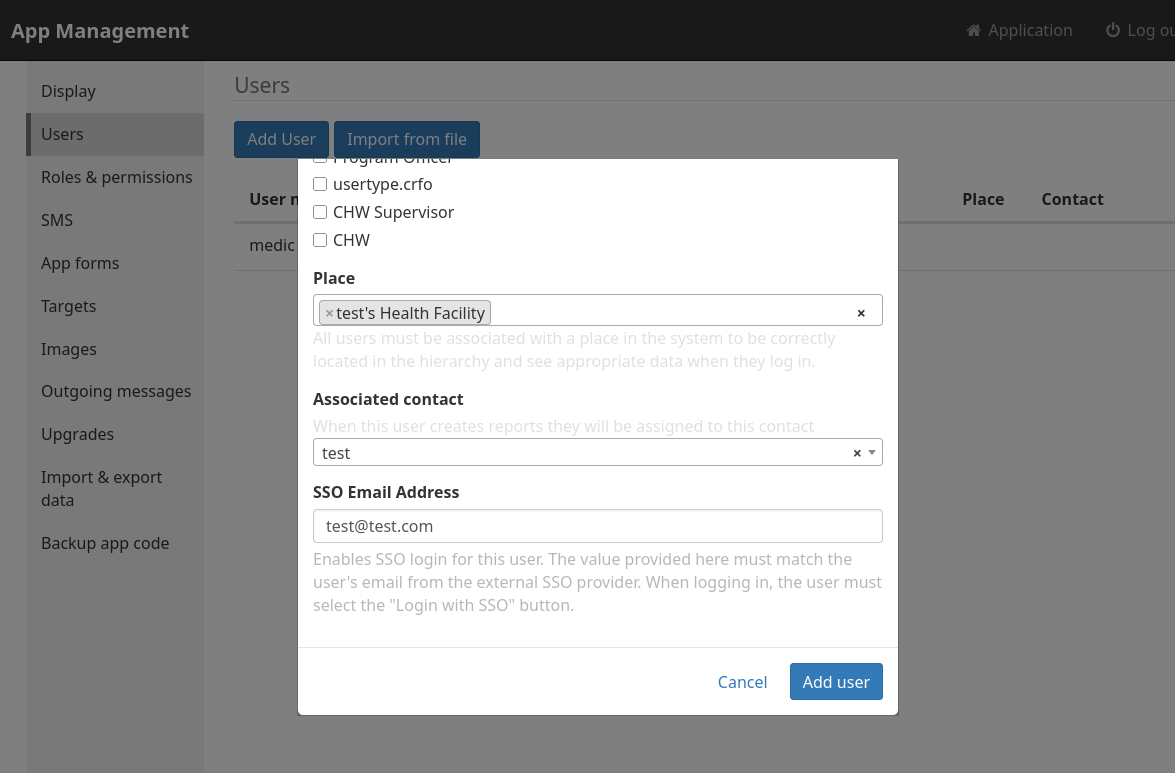

Add CHT user

From the “App Management” console in the CHT, go to “Users” > “Add user”

  • User name: test
  • SSO Email Address: test@test.com (must match email from step #1)
  • Note - the E-mail address field is not used for SSO.


Test login

Logout as the Admin user and then on the CHT login screen, select “Login with SSO”

  • Your browser will be redirected to the Keycloak login screen
  • Enter the username/password for your Keycloak user
  • You will be redirected back to the CHT app and logged in as your CHT user
