Using CHT with Entra

Introduced in 4.20.0. This feature is only compatible with cht-android version v1.5.2 or greater.

Introduction

These steps document how to configure Microsoft Entra as the Single Sign On (SSO) identity provider for the CHT. As well, it walks through provisioning a single user for SSO.

Prerequisites

Microsoft Entra business account with credit card added. Free trial accounts work, but require a credit card.
CHT server - ensure you are running version 4.20.0 or later. This can be an instance of Docker Helper.
DNS Entries and TLS enabled on CHT

Entra Setup

Login

Add new Client

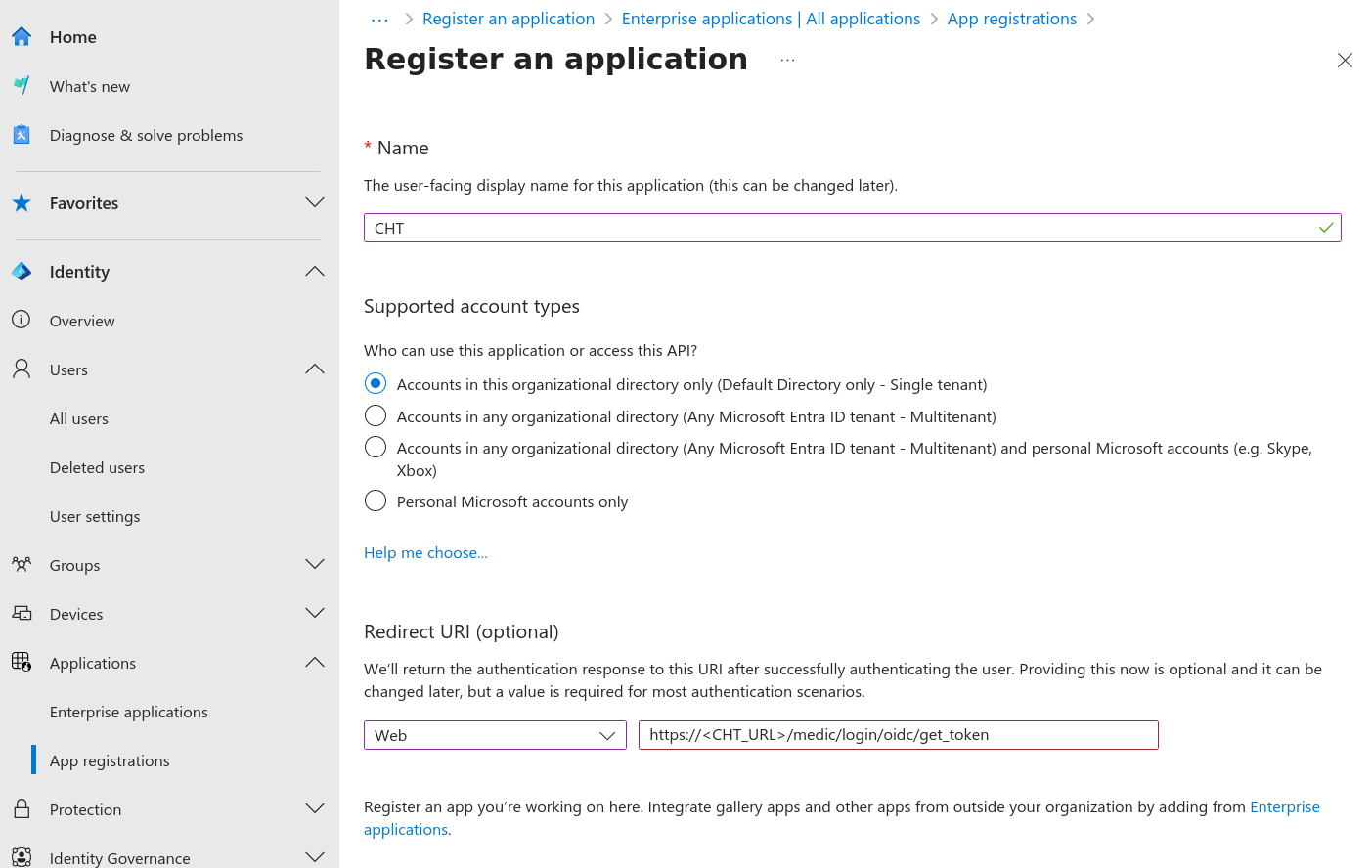

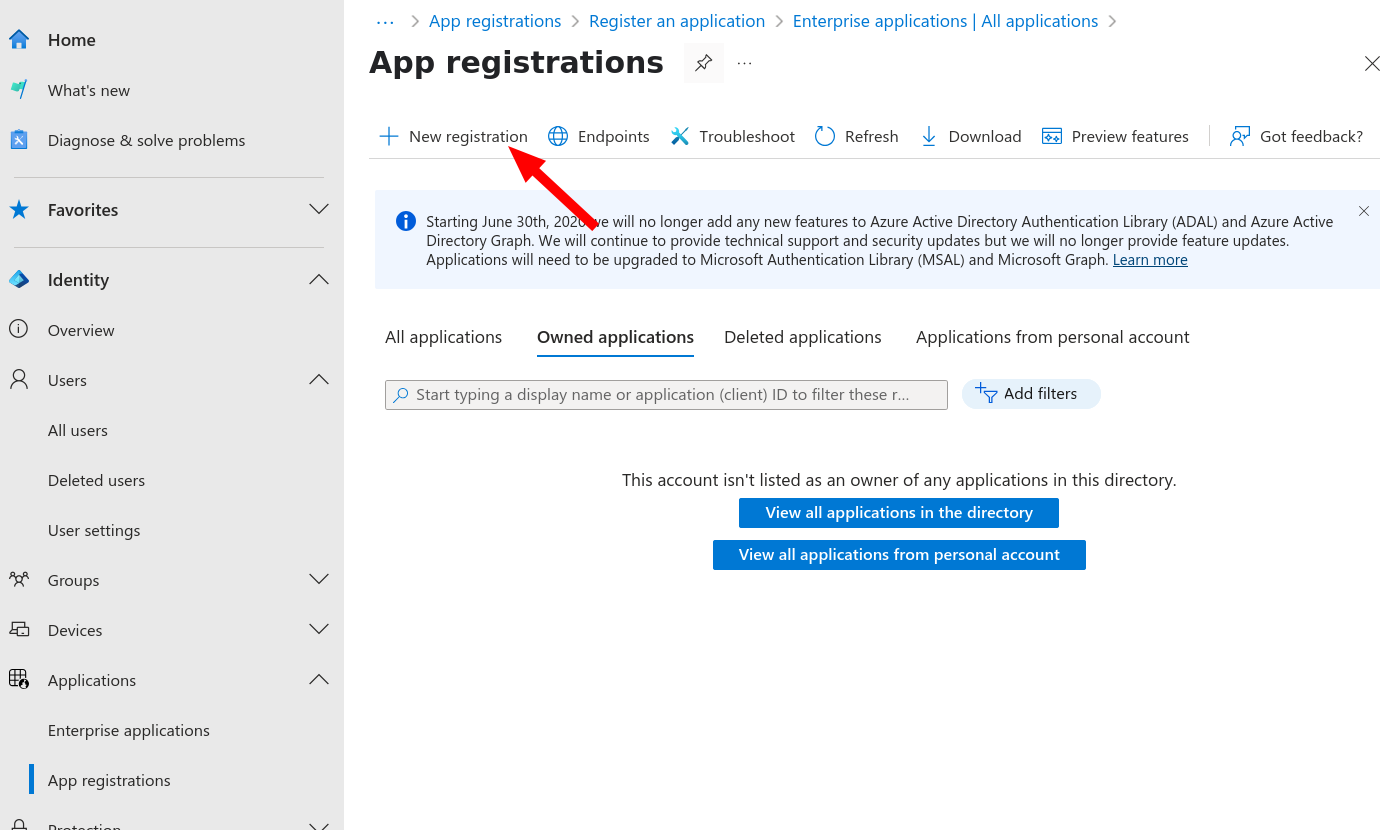

Navigate to “Applications” > “App registrations” > “New registration”
Add a “user-facing display name” of CHT
Under “Redirect URI (optional)” select Web
Enter https://<CHT_URL>/medic/login/oidc as the redirect URI, being sure to replace CHT_URL with your production CHT URL

Copy Secret

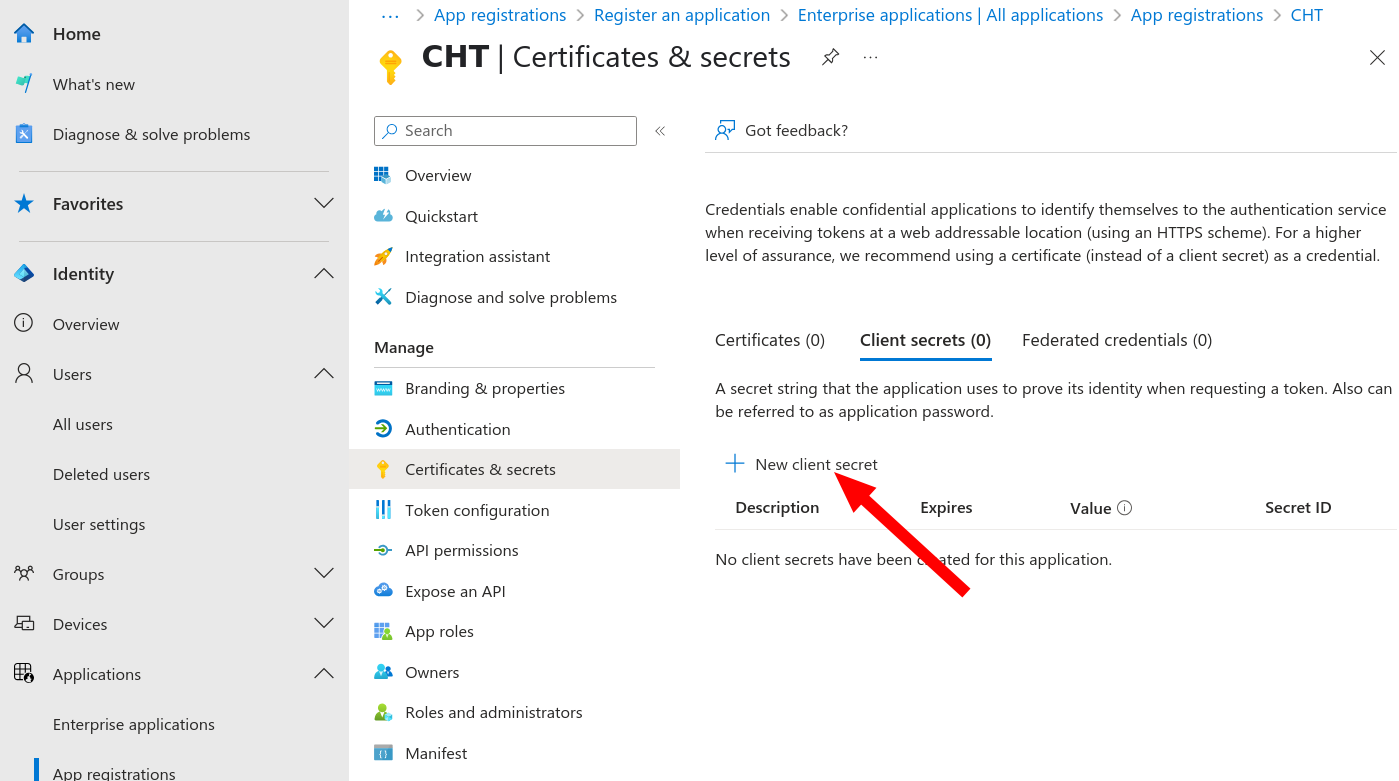

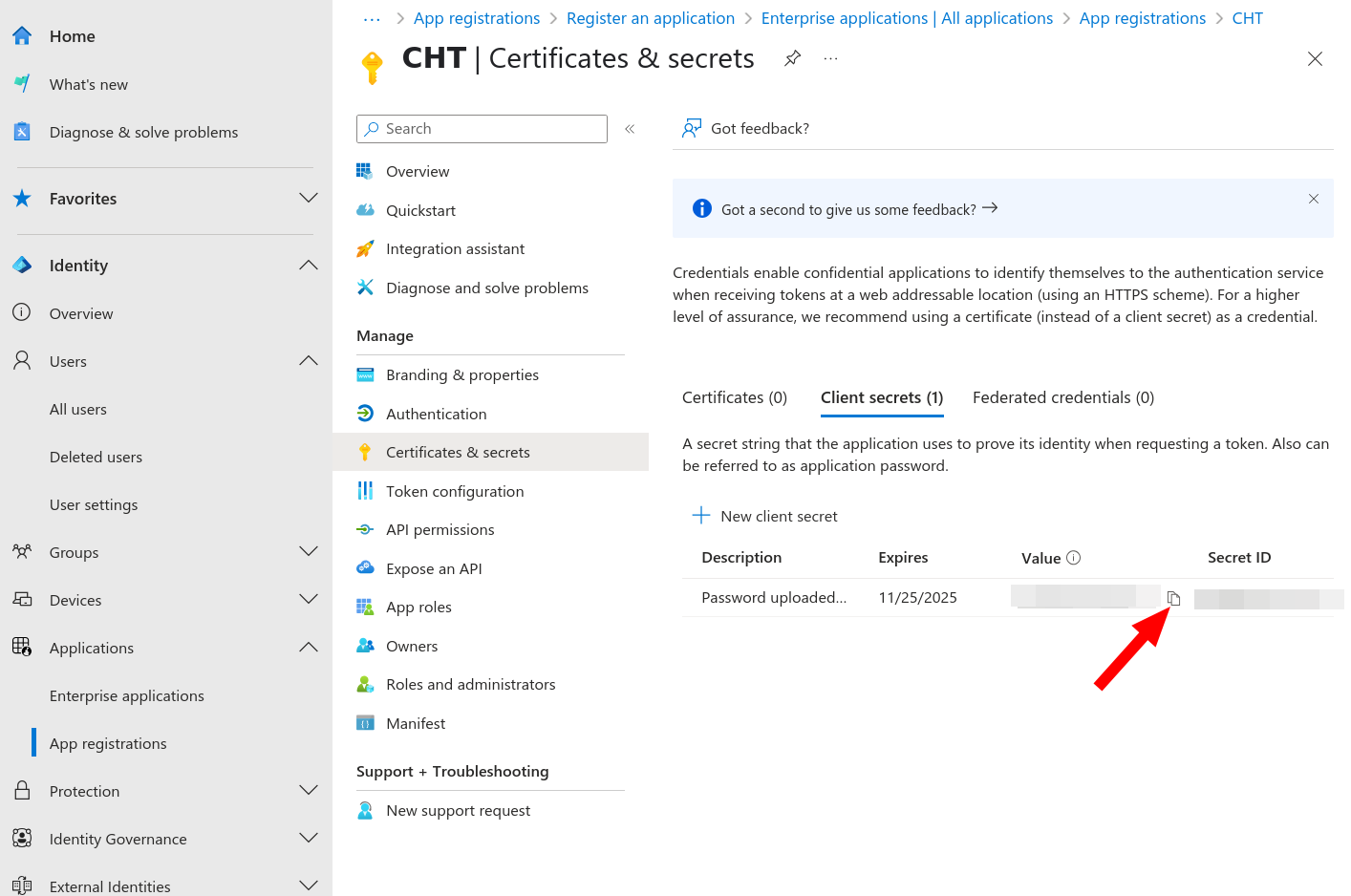

Navigate to “Certificates & secrets” > “Client secrets” > “New client secret”. Add a new secret and copy the Value string

Copy Discovery URL

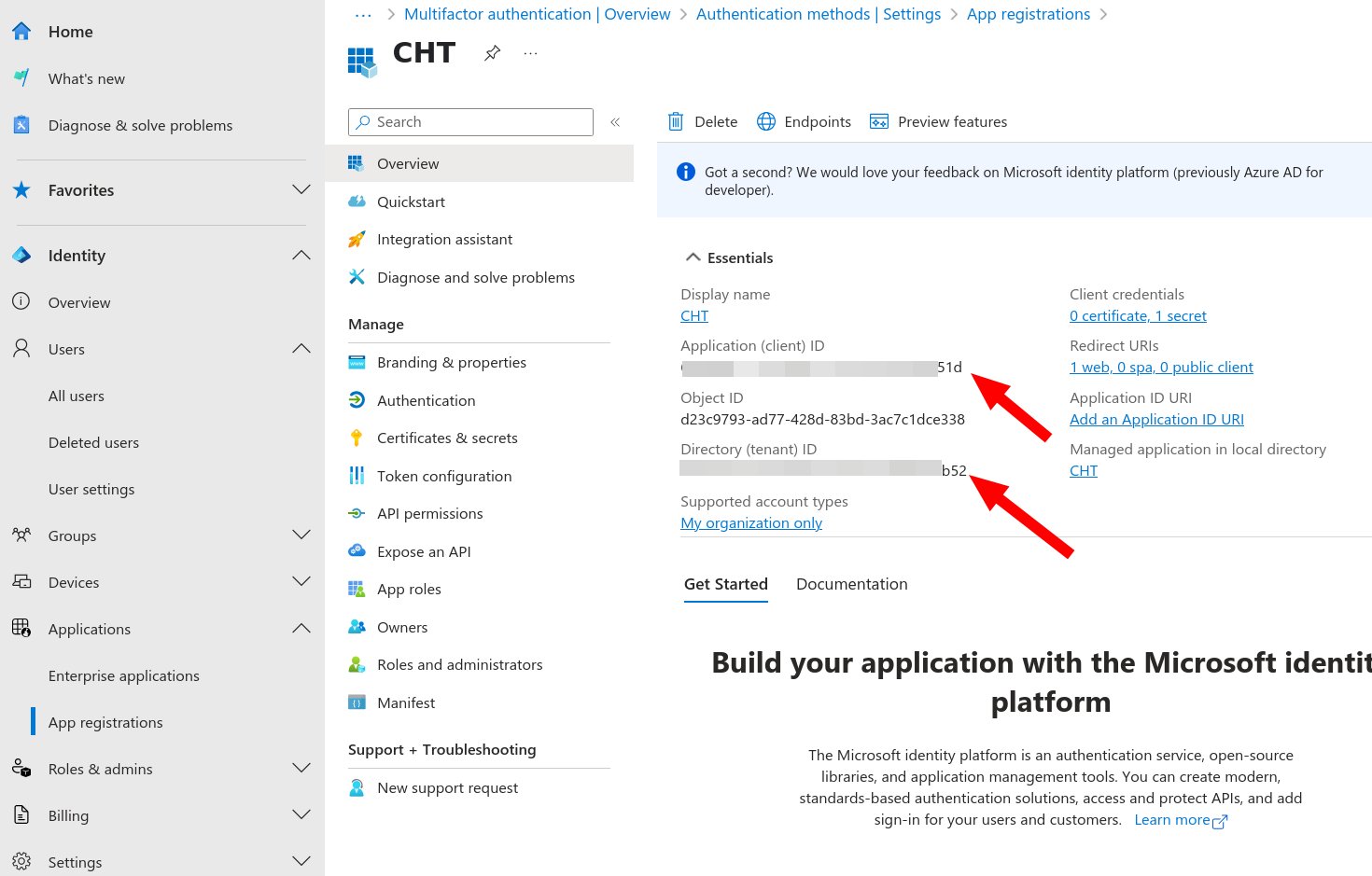

From the “Overview” page copy the “Application (client) ID” and the “Directory (tenant) ID” which are needed for the client_id and discovery_url respectively in step 1 below.

CHT Setup

CHT App Settings

In the config directory for your app, update your app_settings.json file to contain this additional JSON at the end, before the very last }

Be sure to replace APP_ID with the Application (client) ID and DIRECTORY_ID with Directory (tenant) ID both from step 4 above. Replace the CHT_URL with the production URL of your CHT instance. If you’re using a development instance, be sure the CHT_URL includes your port.

    "oidc_provider": {
      "client_id": "<APP_ID>",
      "discovery_url": "https://login.microsoftonline.com/<DIRECTORY_ID>/v2.0/.well-known/openid-configuration"
    },
    "app_url": "https://<CHT_URL>/"

Upload CHT config

Upload the config using CHT Conf. Replace CHT_URL with the production URL of your CHT instance, USER with your admin user and PASSWORD with your password:

cht --url=https://<USER>:<PASSWORD>@<CHT_URL> compile-app-settings upload-app-settings

Upload the config using CHT Conf. Replace CHT_URL with the docker helper URL, including port:

cht --url=https://medic:password@<CHT_URL> compile-app-settings upload-app-settings

Client Secret in CHT

Use the /api/v1/credentials REST api to set the client secret as the oidc:client-secret credential.

Be sure to replace SECRET with the value from step 3 above. As well, replace CHT_URL with the production URL of your CHT instance, USER with your admin user and PASSWORD with your password:

curl -X PUT https://<USER>:<PASSWORD>@<CHT_URL>/api/v1/credentials/oidc:client-secret \
     -H "Content-Type: text/plain" \
     --data "<SECRET>"

Be sure to replace SECRET with the value from step 3 above. As well, replace CHT_URL with the docker helper URL, including port:

curl -X PUT https://medic:password@<CHT_URL>/api/v1/credentials/oidc:client-secret \
     -H "Content-Type: text/plain" \
     --data "<SECRET>"

Upon success, curl should show the JSON {"ok":true} .

Further, going to the CHT login screen should now show an extra login button “Login with SSO”. You may need to hold down the “shift” key and click reload to clear the browser cache:

Add a test user (optional)

Add Entra user: Screen 1

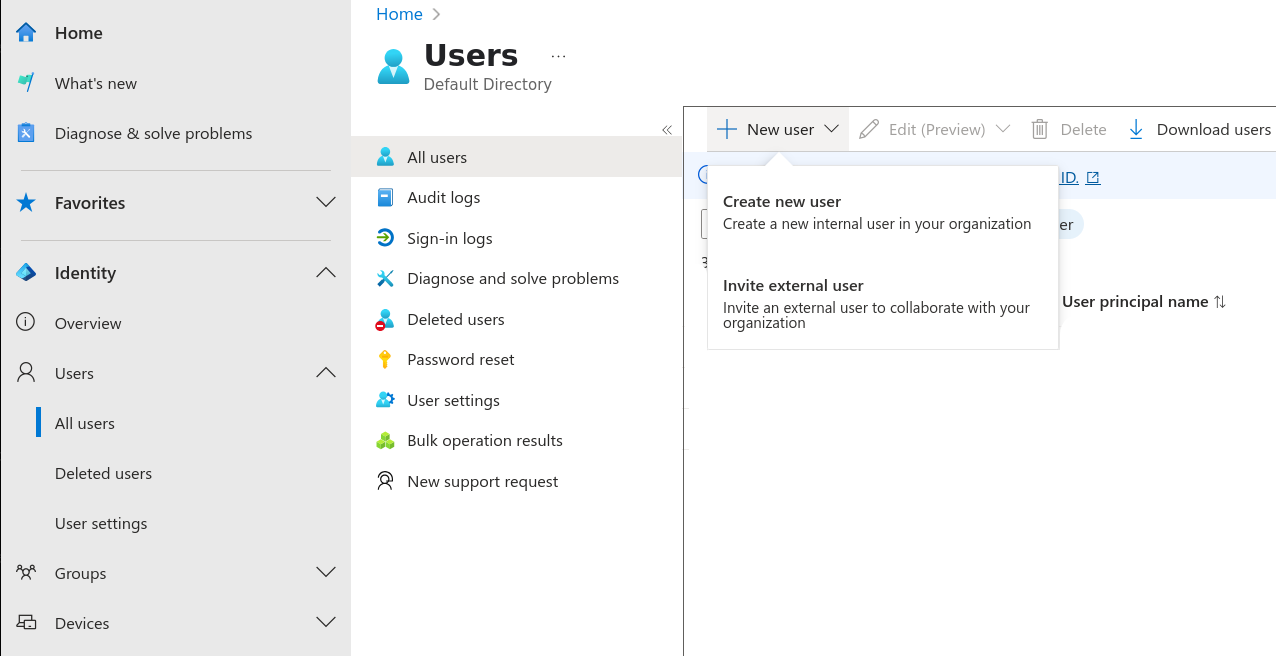

Navigate to “Users” > “All users” > “New user” > “Create new user”

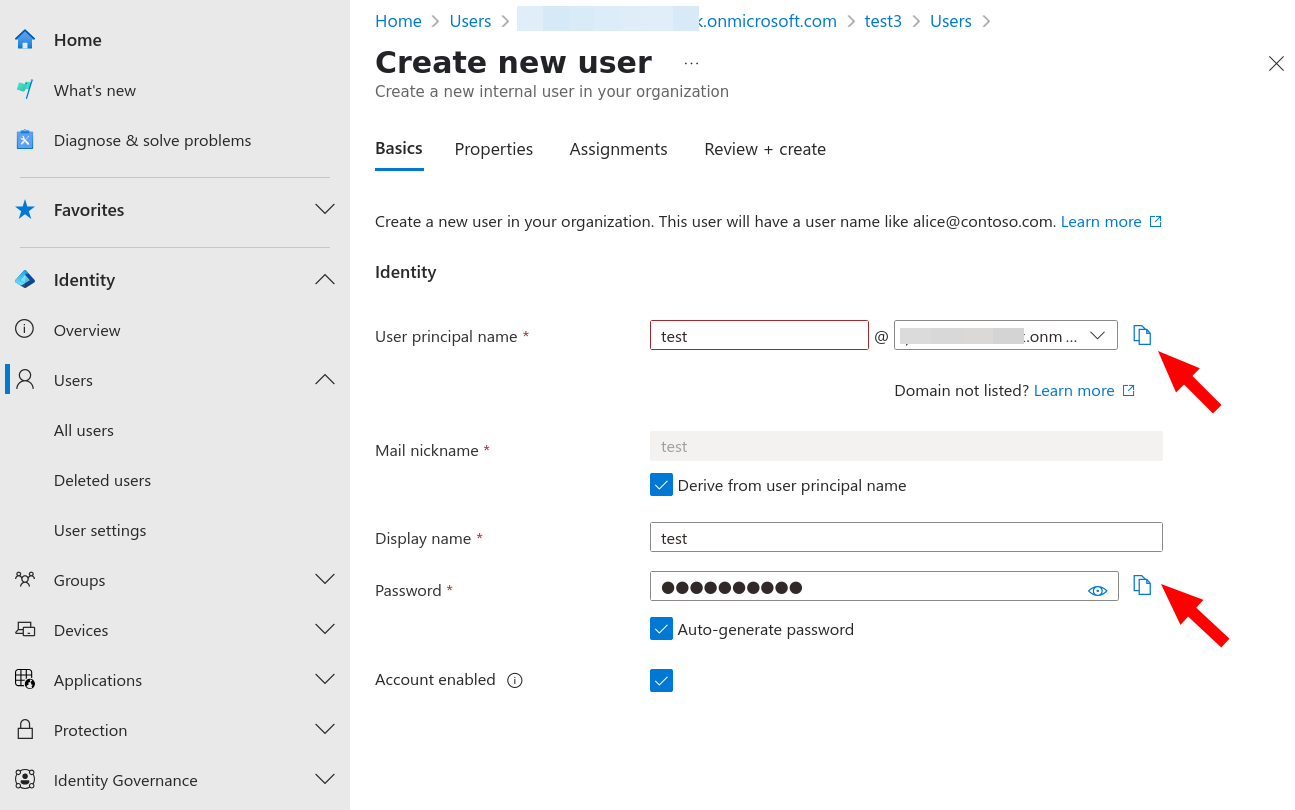

Enter details for your test user. Specifically note the “Mail nickname” value as this will need to match the email value for your CHT user.
Specify “User principal name” of test which will translate to test@<DOMAIN>.com where DOMAIN is the domain you have configured for Entra.
Be sure to copy the principal name and the generated password

Add Entra user: Screen 2

On the 2nd “Properties” screen, you must paste the exact “User principal name” into “Contact Information” -> “Email” from the prior screen. This is what will get passed to the CHT:

Add CHT user

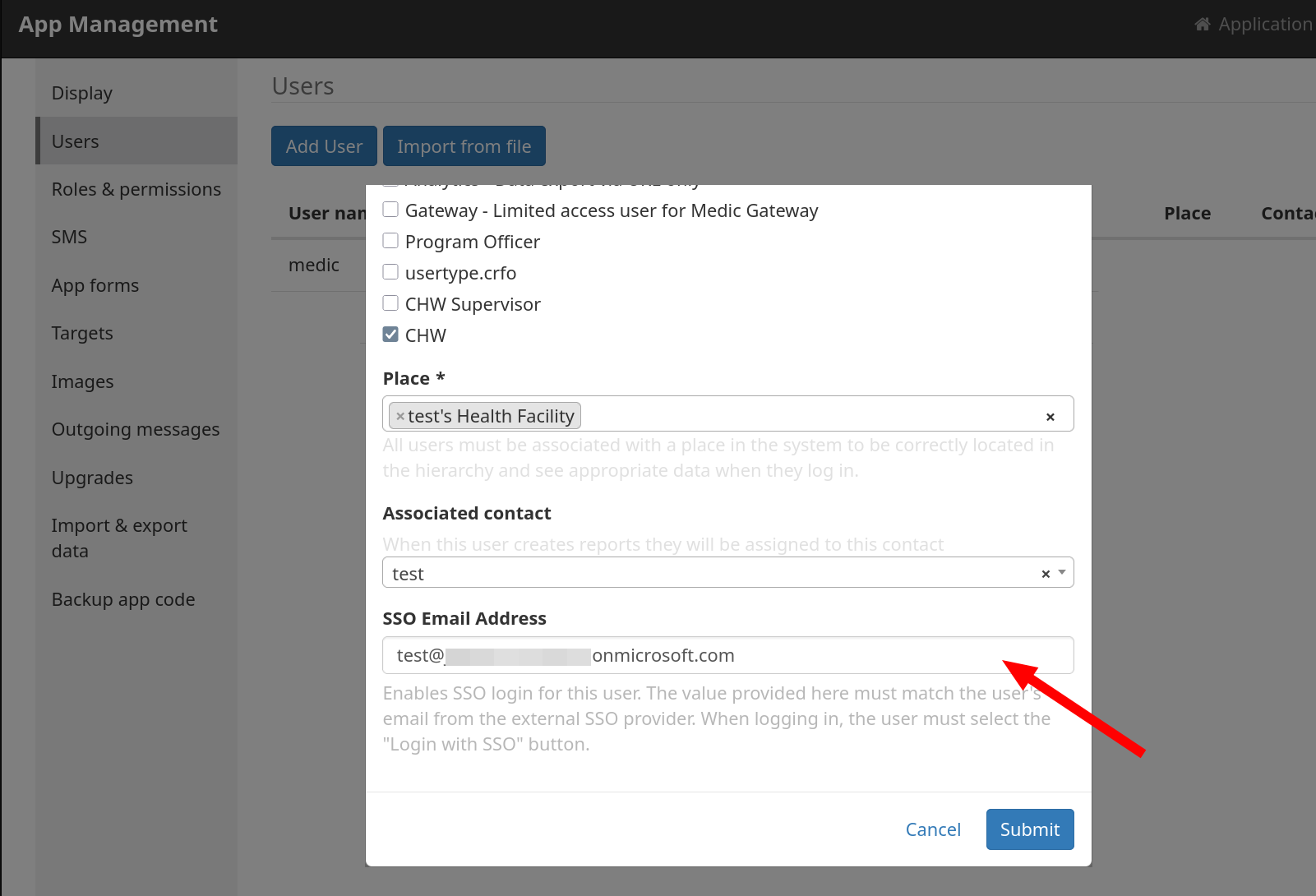

From the “App Management” console in the CHT, go to “Users” > “Add user”

User name: test
SSO Email Address: test@test.com (must match email from prior step)
Note - the E-mail address field is not used for SSO.


Test login

Logout as the Admin user and then on the CHT login screen, select “Login with SSO”

Your browser will be redirected to the Entra login screen
Enter the username/password for your Entra user
You will be redirected back to the CHT app and logged in as your CHT user

References
