ui-extensions

Custom user interfaces

Introduced in v5.2.0

UI Extensions are custom web components that can extend the functionality/content of the CHT web application. This is an advanced feature and requires an app developer with some software development experience.

An example of a use for this feature is a custom landing page for users containing content specific to a deployment.

Types

Currently, there are two supported types of UI Extensions.

Header tab extensions

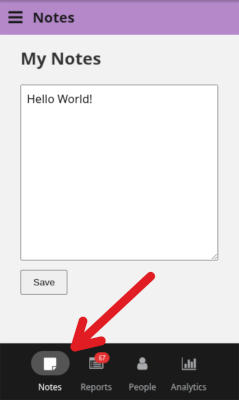

Extensions with the header_tab type are included in the webapp interface as a new top-level tab (along with “People”, “Tasks”, etc).

Use the weight property to control the placement of the UI Extensions in relation to the other visible header tabs. Tabs with a lower weight will be listed first and the first tab will be the default landing page when the app first opens.

Use the accent_color property to control the color of the tool-bar at the top of the interface.

Sidebar tab extensions

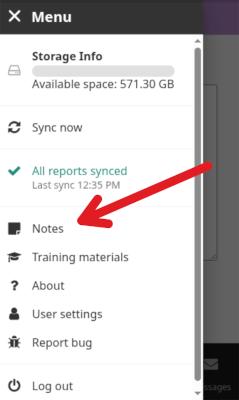

Extensions with the sidebar_tab type are included in the webapp interface as new tabs available from the sidebar menu (along with “Training Materials”, “About”, etc).

Use the accent_color property to control the color of the tool-bar at the top of the interface.

Building

The configuration for a UI Extension consists of a JavaScript file which exports a class extending HTMLElement and a properties.json file containing the configuration for the extension. These files should be added into the /ui-extensions directory in the project’s config directory.

- config
  - ui-extensions
    - my-extension.js
    - my-extension.properties.json

UI Extension Properties

The .properties.json file contains the configuration for each UI Extension.

Web component class

The extension JavaScript file must export a class that extends HTMLElement. This class represents the custom web component that will be available to the user in the webapp. The functionality that can be included in this web component is essentially limitless. Additionally, a number of resources are provided to the web component allowing for better integration with the CHT data model.

Constructor

The constructor of the class is called when the element is created, but before it is inserted on the DOM. It can be used to do any initialization that does not require access to the DOM or other external context. This is a good place to attach the shadow DOM to properly insulate the web component from the rest of the web app.

constructor() {
  super();
  this.attachShadow({ mode: 'open' });
}

connectedCallback()

The connectedCallback() method is called when the element is added to the DOM. This is a good place to finalize the component initialization (set up event listeners, fetch data, render content, etc).

This basic example demonstrates how HTML and CSS for the component can be set:

connectedCallback() {
  this.shadowRoot.innerHTML = `
      <style>
        h1 {
          color: blue;
        }
      </style>
      <h1>Hello World</h1>
    `;
}

Input data

Input data is available to the component logic in the this.inputs root level property.

CHT API

Provides CHT Core Framework’s functions to contact summary, targets, tasks, etc. The API is available in the cht reserved variable under the v1 version.

CHT API’s code samples

const canEdit = cht.v1.hasPermissions('can_edit');
const canManagePlaces = cht.v1.hasPermissions(['can_create_places', 'can_update_places']);
const hasAnyGroup = cht.v1.hasAnyPermission([
    ['can_view_messages', 'can_view_message_action'],
    ['can_view_reports', 'can_verify_reports']
]);
const averageFn = cht.v1.getExtensionLib('average.js');
const targetDocs = cht.v1.analytics.getTargetDocs();

CHT Data model

The cht API can also be used to interact directly with the CHT data model to read/create/update data for contacts, reports, etc. See the cht-datasource docs for more details.

const contactId = this.inputs.userContactSummary.contact_id;
const userContact = await this.cht.v1.person.getByUuid(contactId);

Uploading/deleting UI Extensions

Use cht-conf to upload all configured UI Extensions:

cht --url=${COUCH_URL} upload-ui-extensions

Individual UI extensions can be uploaded by including their name when running the command. If you have a UI extension defined in hello.js/hello.properties.json, running this command will only upload that extension:

cht --url=${COUCH_URL} upload-ui-extensions -- hello

cht-conf can also be used to delete all UI Extensions from an instance:

cht --url=${COUCH_URL} delete-ui-extensions

Additionally, individual UI Extensions can be deleted by including their name when running the command:

cht --url=${COUCH_URL} delete-ui-extensions -- hello
